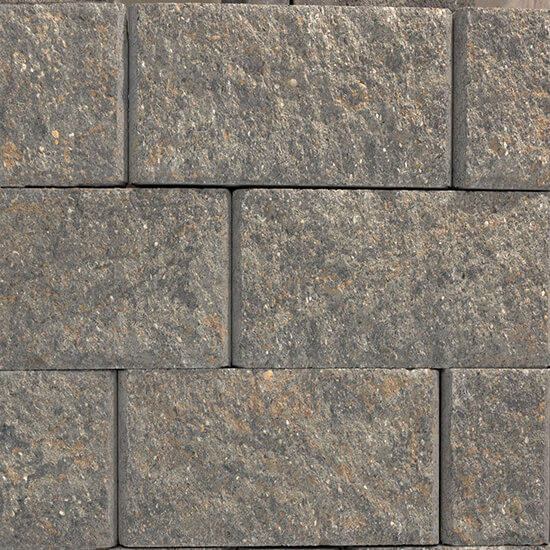

Iron Bay | Diamond Pro Air
The Diamond Pro Air innovative wall block is 30% lighter, allowing you to achieve efficiencies across every aspect of your retaining wall project with a near-vertical design that gives you more usable yard and aesthetic options to complement any architectural style.
Features & Benefits:
- 30% lighter for faster wall installation
- Multiple aesthetic options to support both traditional and contemporary outdoor designs
- Builds near-vertical retaining walls, minimizing excavation and maximizing usable land
- Gravity walls up to 3’4″ including buried course*, retaining walls up to 12 ft with geosynthetic reinforcement when designed by an engineer
- Weighing only 54 lbs., this 1 SF block maximizes installation and shipping efficiencies
- Minimum Radius: Outside 4 ft (measured from top course to unit front). Inside 6 ft (measured on base course to unit front)
- Fast installation due to lug locator system, built-in handholds, lighter weight, and core alignment for easy fills
- Coordinating cap and corner available for complete system and seamless look
- Front lug design produces a 9/16″ per unit setback for a 4° system batter
